Chamber DN 600

CHAMBERS DN 600

Downloads Project Questionnaire Setup and Installation

FOR SOCKET-ENDED PIPE SYSTEMS

BENEFITS OF ROMOLD CHAMBER SYSTEM DN 600

fitted with integrated flexible socket-ends for all inlets and outlets as standard
with SN 8 riser pipe as standard
class D 400 as standard
suitable for up to 5 m groundwater level as standard

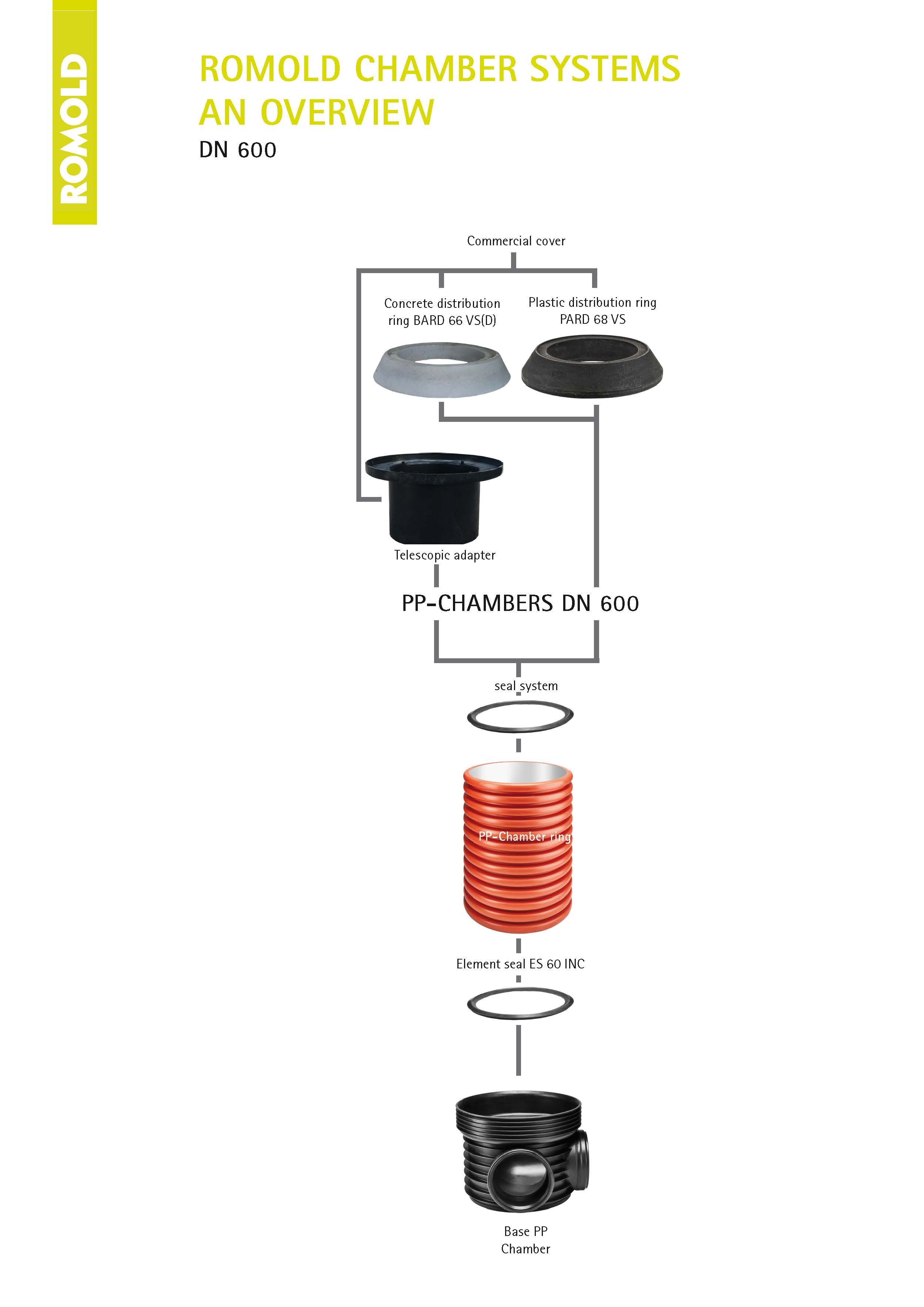

Base, riser pipe and telescopic adapter

flex sleeves integrated

Connection in riser pipe

Straight channel

Angled channel

Inlets 90° and 180° / 180° and 270

Inlets 90° and 270°

Straight channel, with two additional inlets 90° and 270°

BASE PP DN 600

wdt_ID	Main channel	Height cm	Details	Article name
1	Da 160	20	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, incl. seal to riser pipe	I PP 1 B 060.15/20
2	Da 200	23	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, incl. seal to riser pipe	I PP 1 B 060.20/23
3	Da 250	29	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, incl. seal to riser pipe	I PP 1 B 060.25/29
4	Da 315	36	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, incl. seal to riser pipe	I PP 1 B 060.30/36
6	Da 400	45	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, incl. seal to riser pipe	I PP 1 B 060.40/45

BASE PP DN 600 – STRAIGHT CHANNEL WITH INLETS

wdt_ID	Channel DN/DO	Height cm	Details	Article name
1	Da 160	20	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.15/20–90°
2	Da 200	23	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.20/23–90°
3	Da 250	29	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.25/29–90°
4	Da 160	20	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.15/20–270°
5	Da 200	23	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.20/23–270°
6	Da 250	29	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.25/29–270°
7	Da 315	36	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.30/36–90°
8	Da 315	36	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180° / 180°, 270°, incl. seal to riser pipe	I PP 2 BL O60.30/36–270°
9	Da 160	20	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 270°, incl. seal to riser pipe	I PP 2 BT O60.15/20–90°
10	Da 200	23	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 270°, incl. seal to riser pipe	I PP 2 BT O60.20/23–90°
11	Da 250	29	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 270°, incl. seal to riser pipe	I PP 2 BT O60.25/29–90°
12	Da 315	36	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 270°, incl. seal to riser pipe	I PP 2 BT O60.30/36–90°
13	Da 160	20	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180°, 270°, incl. seal to riser pipe	I PP 3 BL O60.15/20–90°
14	Da 200	23	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180°, 270°, incl. seal to riser pipe	I PP 3 BL O60.20/23–90°
15	Da 250	29	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180°, 270°, incl. seal to riser pipe	I PP 3 BL O60.25/29–90°
16	Da 315	36	Socket joint on inlet and outlet for a flexible connection up to +/- 15° of smooth plastic pipes, without bed drop, inlets at 90°, 180°, 270°, incl. seal to riser pipe	I PP 3 BL O60.30/36–90°

BASE PP DN 600 – ANGLED MAIN CHANNEL

wdt_ID	Main channel	Height cm	Details	Article name
5	Da 250	29	Socket joint on inlet and outlet for a flexible connection up to +/- 15° connection channel, inkc. seal to riser pipe	I PP 1 BB 060.25/29-X
6	Da 160	20	Socket joint on inlet and outlet for a flexible connection up to +/- 15° connection channel, inkc. seal to riser pipe	I PP 1 BB O60.15/20-X
7	Da 200	23	Socket joint on inlet and outlet for a flexible connection up to +/- 15° connection channel, inkc. seal to riser pipe	I PP 1 BB O60.20/23-X
8	Da 315	36	Socket joint on inlet and outlet for a flexible connection up to +/- 15° connection channel, inkc. seal to riser pipe	I PP 1 BB 060.30/36-X

° Angled right, Degree number for article name:

° Angled left, Degree number for article name:

RISER PIPE DN 600

wdt_ID	Height cm	DN mm	Details	Article name
1	100	600	Corrugated riser pipe SN 8 with smooth inner surface	E 60/100-SN8-INC
2	150	600	Corrugated riser pipe SN 8 with smooth inner surface	E 60/150-SN8-INC
3	200	600	Corrugated riser pipe SN 8 with smooth inner surface	E 60/200-SN8-INC
4	300	600	Corrugated riser pipe SN 8 with smooth inner surface	E 60/300-SN8-INC
5	600	600	Corrugated riser pipe SN 8 with smooth inner surface	E 60/600-SN8-INC
6	600	600	Corrugated riser pipe SN 4 without smooth inner surface	E 60/600-SN4-PLAST

LOAD DISTRIBUTION RING

wdt_ID	Height cm	DN mm	Details	Article name
1	10	600	Polymer load distribution ring for commercial covers	PARD 70/17 VS
2	10	600	Concrete load distribution ring for commercial cover	BARD 69 VS

TELESCOPIC ADAPTER

wdt_ID	Height cm	DN mm	Details	Article name
1	10–40	600	Telescopic adapter from PP inclusive seal in connection with riser pipe SN4 (without smooth inner surface)	T 60/036 D

ACCESSORIES

wdt_ID	Details	Article name
1	Seal for connection between base and riser pipe	ES 60 INC
2	Seal between riser pipe and polymer load distribution ring	ES 60 INC
3	Seal between riser pipe and concrete load distribution ring	DS 67
5	ROMOLD elastomer-lip-seal DN 150 / d = 160 mm, for the connection of smooth plastic pipes for drop structures, material: SBR	I SB ISR 160
7	ROMOLD elastomer-lip-seal DN 200 / d = 200 mm, for the connection of smooth plastic pipes for drop surfaces, material: SBR	I SB ISR 200
10	ROMOLD cup saw DN/OD 160 (188) mm, for inlet pipe seal ISR 160 / DN 150, incl. saw for adapter CSA2	CS-I 160/188
11	ROMOLD cup saw DN/OD 200 (228) mm, for inlet pipe seal ISR 200 / DN 200, incl. saw for adapter CSA2	CS-I 200/228

DOES DN 1000 UP TO A HEIGHT OF 140 CM REALLY MAKE SENSE?

No, because there is no acceccibility up to 140 cm for DN 1000.

No, because blind spots make inspection impossible. Therefore you can save money and make use of the alternative from ROMOLD.
